3M  8337-6003  Standard D Sub Connector, 8300 Series, DC, Receptacle, 37 Contacts, Metal Body, IDC / IDT

3M 8337-6003
3M 8337-6003
3M 8337-6003
Technical Data Sheet (270.36KB) EN See all Technical Docs

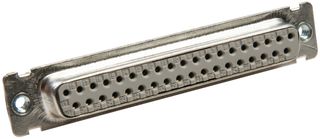

The actual product may differ from image shown

3M 8337-6003
3M 8337-6003
3M 8337-6003

Product Overview

The 8300 series low-profile D-sub Socket Connector with open cover rivet crimp. It has copper alloy contact with 30-micro-inch minimum gold wiping area, nickel under-plating and glass filled polyester insulation.
  • Improved metal strain relief - hooks directly to metal shell
  • Available in either open or closed end cover
  • Available in preassembled open cover
  • Four mounting options
  • UL94V-0 Flammability
  • >5 x 10⁹Ω at 500VDC Insulation resistance
  • 1A Current rating
  • -55 to 105°C Temperature range



Product Information

Connector Type:
Product Range:
8300 Series
D Sub Shell Size:
DC
Gender:
Receptacle
No. of Contacts:
37Contacts
Connector Body Material:
Metal Body
Connector Mounting:
Contact Termination Type:
IDC / IDT
Contact Plating:
Gold Plated Contacts
Contact Termination:
IDC / IDT
Series:
8300
Contact Material:
Copper Alloy
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Communications & Networking;
  • Computers & Computer Peripherals;
  • Industrial

Also Known As

GTIN UPC EAN: 04046719031283 DE610012879

Legislation and Environmental

RoHS Compliant:
Yes
